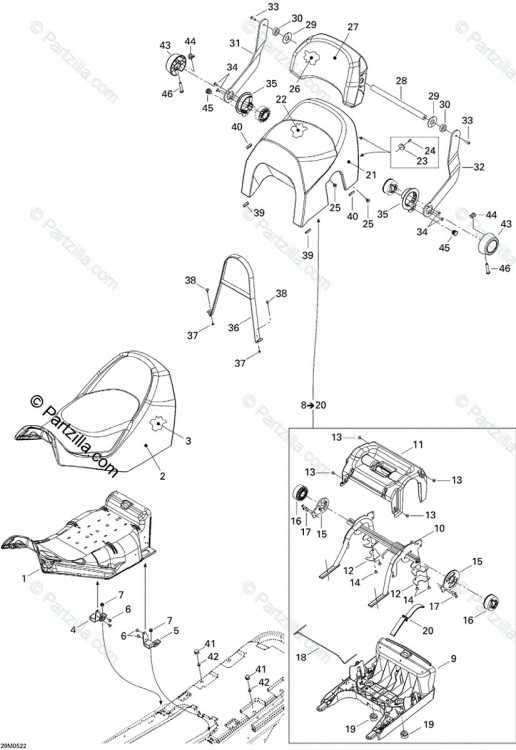

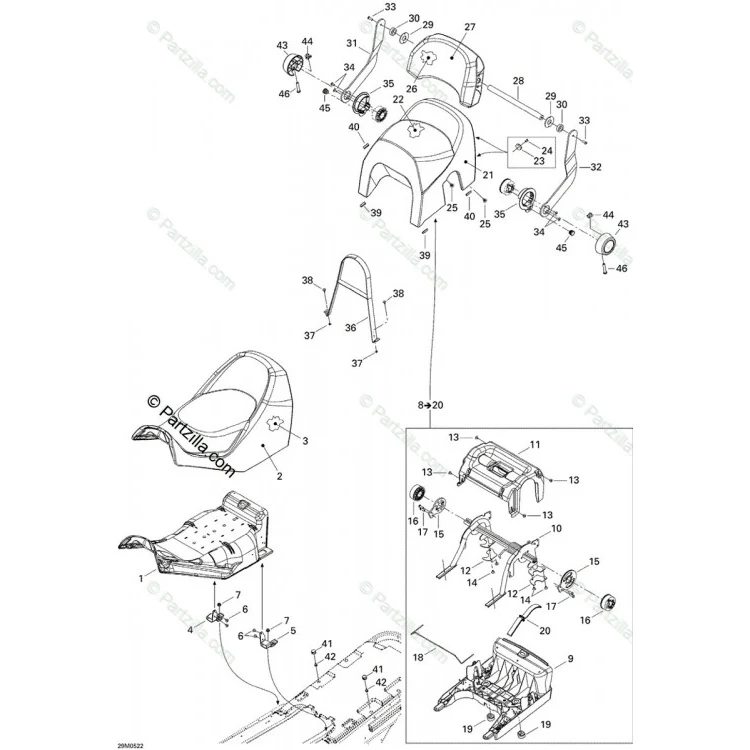

  • Схема сборки (OEM-каталог)

510004377 Верхняя ось спинки

  • OEM 510004377
Техника
Ski-Doo, Lynx
Применяемость
92 модели · схема узла

Применяемость

92 модели

Каталожный номер применяемости: 510004377

Ski-Doo EXPEDITION 2005–2020 · 23

  • Ski-Doo EXPEDITION - 2-STROKE - SPORT (2017)
  • Ski-Doo EXPEDITION - 4-STROKE - SPORT (2017)
  • Ski-Doo EXPEDITION - SPORT 2-STROKE (2016)
  • Ski-Doo EXPEDITION - SPORT 4-STROKE (2016)
  • Ski-Doo EXPEDITION SPORT 550F (2007–2008, 2018–2020)
  • Ski-Doo EXPEDITION SPORT 550F XP (2013–2014)
Ещё 17
  • Ski-Doo EXPEDITION SPORT 550F XP154 (2015)
  • Ski-Doo EXPEDITION SPORT 600 ACE (2018–2019)
  • Ski-Doo EXPEDITION SPORT 600 ACE (4-TEMPS) XP (2013)
  • Ski-Doo EXPEDITION SPORT 600ACE XP (2014)
  • Ski-Doo EXPEDITION SPORT 600ACE XS154 (2015)
  • Ski-Doo EXPEDITION SPORT 900 ACE (2018)
  • Ski-Doo EXPEDITION SPORT 900ACE XS (2014)
  • Ski-Doo EXPEDITION SPORT 900ACE XS154 (2015)
  • Ski-Doo Expedition 550F (2005–2006)
  • Ski-Doo Expedition 600 H.O. SDI (2006)
  • Ski-Doo Expedition Sport 550F XP-FAN (2011–2012)
  • Ski-Doo Expedition Sport 600ACE (2011)
  • Ski-Doo Expedition Sport 600ACE LFF (2012)
  • Ski-Doo Expedition Sport V-800 (2007–2008)
  • Ski-Doo Expedition TUV 600 H.O. SDI (2007–2008)
  • Ski-Doo Expedition TUV V800 (2007–2008)
  • Ski-Doo Expedition V-1000 (2006)

Ski-Doo GRAND TOURING 2011–2019 · 23

  • Ski-Doo GRAND TOURING - 2-STROKE (2016–2017)
  • Ski-Doo GRAND TOURING - 4-STROKE (2016–2017)
  • Ski-Doo GRAND TOURING 600 ACE (2019)
  • Ski-Doo GRAND TOURING LE 1200 XR137 (2015)
  • Ski-Doo GRAND TOURING LE 12004TEC XR (2014)
  • Ski-Doo GRAND TOURING LE 600HOE XR (2013–2014)
Ещё 17
  • Ski-Doo GRAND TOURING LE 600HOETEC XR137 (2015)
  • Ski-Doo GRAND TOURING LE 900 ACE XR (2014)
  • Ski-Doo GRAND TOURING LE 900ACE XR137 (2015)
  • Ski-Doo GRAND TOURING SE 1200 XR137 (2015)
  • Ski-Doo GRAND TOURING SE 12004TEC XR (2014)
  • Ski-Doo GRAND TOURING SPORT 550F XP (2013–2014)
  • Ski-Doo GRAND TOURING SPORT 550F XP137 (2015)
  • Ski-Doo GRAND TOURING SPORT 600 ACE (4-TEMPS) XP (2013)
  • Ski-Doo GRAND TOURING SPORT 600 XP (2011–2014)
  • Ski-Doo GRAND TOURING SPORT 600ACE XP (2014)
  • Ski-Doo GRAND TOURING SPORT 600ACE XS137 (2015)
  • Ski-Doo Grand Touring LE & SE 1200 XR (2011–2013)
  • Ski-Doo Grand Touring LE 600HO ETEC XR (2011)
  • Ski-Doo Grand Touring LE 600HOETEC XR (2012)
  • Ski-Doo Grand Touring Sport 550F XP-FAN (2011–2012)
  • Ski-Doo Grand Touring Sport 600ACE (2011)
  • Ski-Doo Grand Touring Sport 600ACE LFF (2012)

Ski-Doo GTX 2005–2009 · 15

  • Ski-Doo GTX 380F (2005–2006)
  • Ski-Doo GTX 500SS (2005–2006)
  • Ski-Doo GTX 550F (2005–2008)
  • Ski-Doo GTX 600 HO (2005)
  • Ski-Doo GTX 600 HO SDI (2005–2006)
  • Ski-Doo GTX 800 HO (2005–2006)
Ещё 9
  • Ski-Doo GTX Fan (2009)
  • Ski-Doo GTX LE 1200 4-TEC (2009)
  • Ski-Doo GTX LE 600 H.O. E-TEC (2009)
  • Ski-Doo GTX LTD 600 HO SDI (2007–2008)
  • Ski-Doo GTX LTD 800 HO PTEK (2007)
  • Ski-Doo GTX SE 1200 4-TEC (2009)
  • Ski-Doo GTX SPORT 600 HO SDI (2007–2008)
  • Ski-Doo GTX Sport 500 SS (2007)
  • Ski-Doo GTX Sport 500SS (2008–2009)

Ski-Doo Grand-Touring 2010 · 5

  • Ski-Doo Grand-Touring LE 1200 (2010)
  • Ski-Doo Grand-Touring LE 600HO ETEC (2010)
  • Ski-Doo Grand-Touring SE 1200 (2010)
  • Ski-Doo Grand-Touring Sport 550F (2010)
  • Ski-Doo Grand-Touring Sport 600 (2010)

Ski-Doo Legend 2007–2009 · 2

  • Ski-Doo Legend Touring (2009)
  • Ski-Doo Legend Touring V800 (2007–2008)

Ski-Doo Skandic 2007–2009 · 4

  • Ski-Doo Skandic SWT V-800 (2007–2008)
  • Ski-Doo Skandic Tundra LT 550F (2008–2009)
  • Ski-Doo Skandic Tundra LT V-800 (2008)
  • Ski-Doo Skandic Tundra LT V800 4-TEC (2009)

Lynx adventure 2006–2011 · 13

  • Lynx adventure 300f (2007)
  • Lynx adventure 550 (2009)
  • Lynx adventure 550f (2007)
  • Lynx adventure gt 600 ho sdi (2008)
  • Lynx adventure gt 600ho sdi (2006–2007)
  • Lynx adventure lu ranger 550 (2008)
Ещё 7
  • Lynx adventure lx 550 (2008)
  • Lynx adventure lx 550 f (2006–2007)
  • Lynx adventure lx 600 (2006)
  • Lynx adventure lx 600 ace (2011)
  • Lynx adventure ranger 550 rf (2009)
  • Lynx adventure ranger v 800 (2009)
  • Lynx adventure v 800 (2007–2009)

Lynx ranger 2008 · 1

  • Lynx ranger v 800 (2008)

Lynx yeti 2007–2009 · 6

  • Lynx yeti pro v 800 (2007–2008)
  • Lynx yeti pro v 800 rus (2007)
  • Lynx yeti suv v 800 (2007, 2009)
  • Lynx yeti tuv 600ho sdi (2007)
  • Lynx yeti tuv v 1300 (2007)
  • Lynx yeti v 800 (2008)

Список перенесён из каталогов производителя и не заменяет проверку по VIN: сомневаетесь — напишите нам, сверим по заводской схеме.

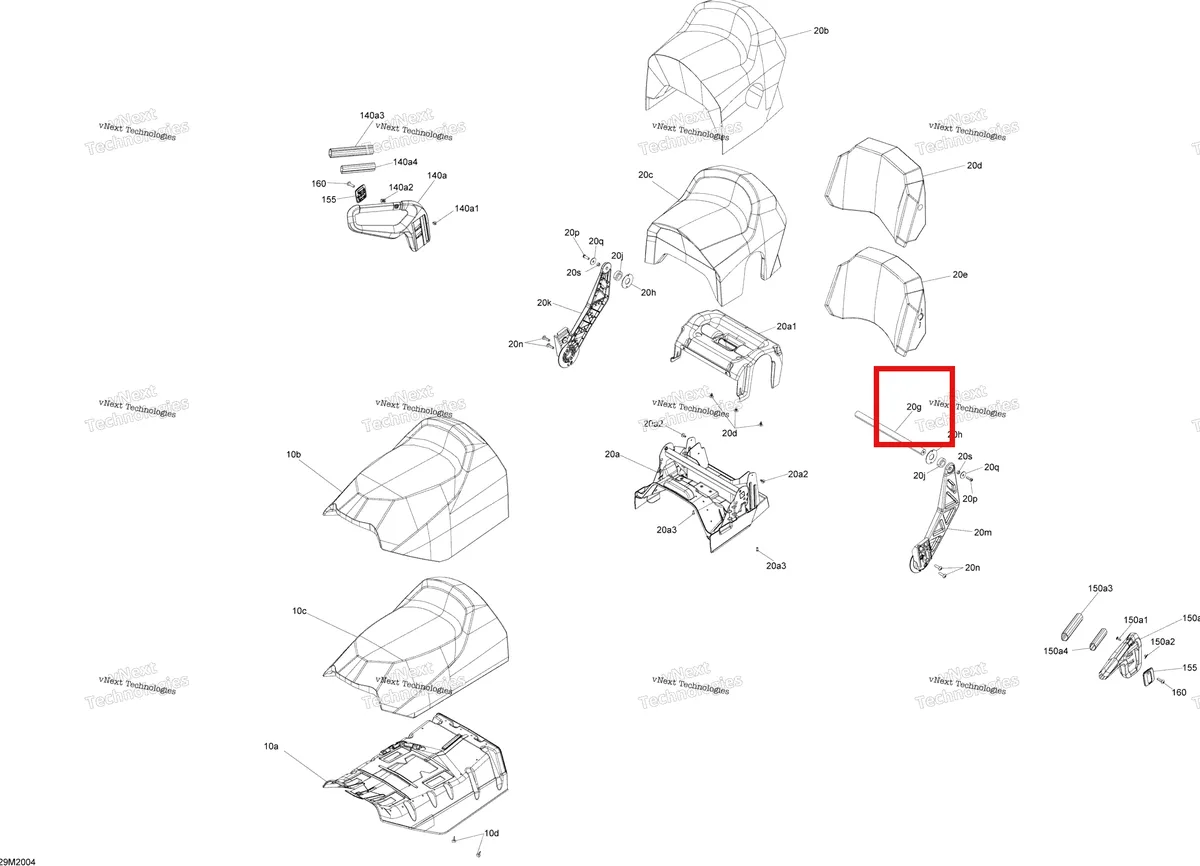

Схема применяемости: 510004377 Верхняя ось спинки
Схема узла. Нужная позиция обведена красным.

Описание

Применяемость детали (OEM 510004377) — техника BRP, 2005–2020: Снегоходы Lynx: Ranger, YETI, Adventure (двигатели 550–1300). Годы: 2006–2011. Снегоходы Ski-Doo: Expedition, GTX, Grand Touring, Legend, Skandic (двигатели 500–1300). Годы: 2005–2020.
