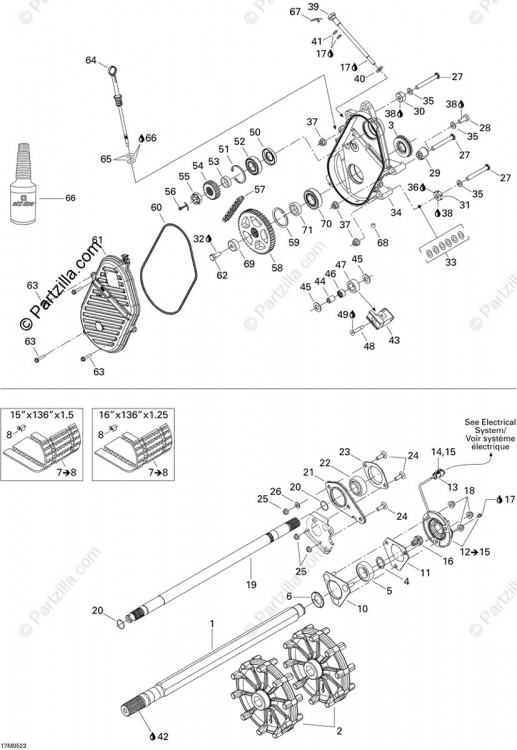

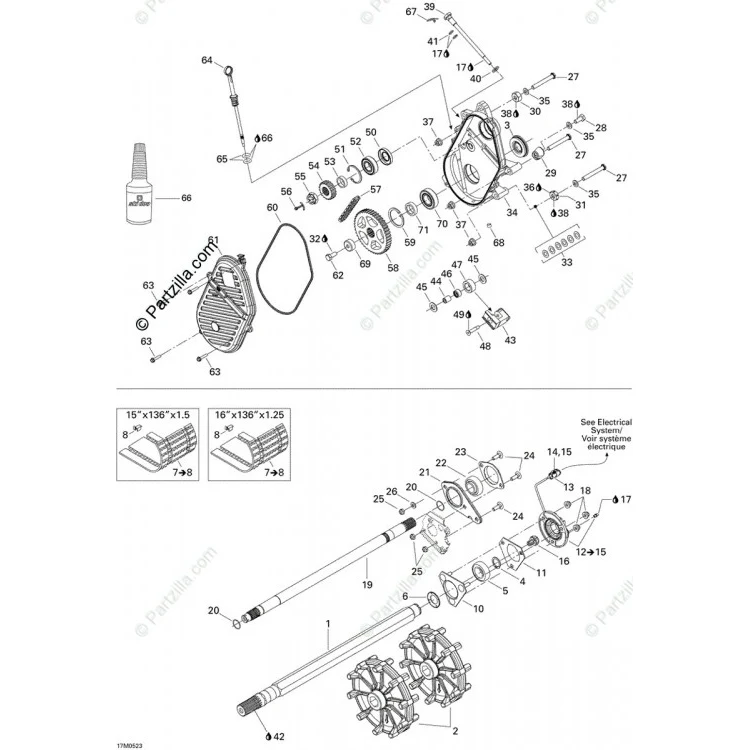

  • Схема сборки (OEM-каталог)

504152031 Звездочка, 19 TEETH

  • OEM 504152031
Техника
Ski-Doo, Lynx
Применяемость
74 модели · схема узла

Применяемость

74 модели

Каталожный номер применяемости: 504152031

Ski-Doo EXPEDITION 2005–2020 · 8

  • Ski-Doo EXPEDITION - 2-STROKE - SPORT (2017)
  • Ski-Doo EXPEDITION - SPORT 2-STROKE (2016)
  • Ski-Doo EXPEDITION SPORT 550F (2007–2008, 2018–2020)
  • Ski-Doo EXPEDITION SPORT 550F XP (2013–2014)
  • Ski-Doo EXPEDITION SPORT 550F XP154 (2015)
  • Ski-Doo Expedition 550F (2005–2006)
Ещё 2
  • Ski-Doo Expedition Sport 550F XP-FAN (2011–2012)
  • Ski-Doo Expedition Sport V-800 (2007–2008)

Ski-Doo Freestyle 2007–2009 · 2

  • Ski-Doo Freestyle Back Country (2009)
  • Ski-Doo Freestyle Back Country 550F (2007–2008)

Ski-Doo GRAND TOURING 2011–2015 · 3

  • Ski-Doo GRAND TOURING SPORT 550F XP (2013–2014)
  • Ski-Doo GRAND TOURING SPORT 550F XP137 (2015)
  • Ski-Doo Grand Touring Sport 550F XP-FAN (2011–2012)

Ski-Doo GSX 2005–2009 · 3

  • Ski-Doo GSX 380F (2005–2006)
  • Ski-Doo GSX 550F (2005–2008)
  • Ski-Doo GSX Fan (2009)

Ski-Doo GTX 2005–2009 · 3

  • Ski-Doo GTX 380F (2005–2006)
  • Ski-Doo GTX 550F (2005–2008)
  • Ski-Doo GTX Fan (2009)

Ski-Doo Grand-Touring 2010 · 1

  • Ski-Doo Grand-Touring Sport 550F (2010)

Ski-Doo MX 2005–2009 · 3

  • Ski-Doo MX Z 380F (2005–2006)
  • Ski-Doo MX Z 550F (2005–2008)
  • Ski-Doo MX Z 550X (2006–2009)

Ski-Doo MXZ 2014 · 1

  • Ski-Doo MXZ SPORT 550F XP (2014)

Ski-Doo RENEGADE 2011–2014 · 2

  • Ski-Doo RENEGADE SPORT 550F XP (2014)
  • Ski-Doo Renegade Sport 550F XP-FAN (2011–2012)

Ski-Doo SKANDIC 2007–2022 · 3

  • Ski-Doo SKANDIC SPORT 600 EFI (2021–2022)
  • Ski-Doo Skandic Tundra V-800 (2007)
  • Ski-Doo Skandic Tundra, STD, SPORT, LT (2010)

Ski-Doo SUMMIT 2005–2020 · 16

  • Ski-Doo SUMMIT - 2-STROKE - 600 CARB (2017)
  • Ski-Doo SUMMIT 600 CARB (2016, 2018–2020)
  • Ski-Doo SUMMIT 600HO E-TEC (2018)
  • Ski-Doo SUMMIT SPORT 600 XP 146 (2014)
  • Ski-Doo SUMMIT SPORT 600 XP146 (2015)
  • Ski-Doo Summit 550F (2005–2008)
Ещё 10
  • Ski-Doo Summit Everest 500SS (2009)
  • Ski-Doo Summit Everest 600 H.O. E-TEC (2009)
  • Ski-Doo Summit Everest 600HO ETEC (2010)
  • Ski-Doo Summit Everest 800R PTEK (2010)
  • Ski-Doo Summit Fan (2009)
  • Ski-Doo Summit SPORT 600 (2010–2012)
  • Ski-Doo Summit SPORT 800R P-TEK (2012)
  • Ski-Doo Summit X 600 H.O. E-TEC (2009)
  • Ski-Doo Summit X 600HO ETEC (2010)
  • Ski-Doo Summit X 800R PTEK (2010)

Ski-Doo TUNDRA 2011–2022 · 16

  • Ski-Doo TUNDRA - 2-STROKE - LT-SPORT (2017)
  • Ski-Doo TUNDRA - 2-STROKE - XTREME (2017)
  • Ski-Doo TUNDRA - LT-SPORT 2-STROKE (2016)
  • Ski-Doo TUNDRA 550F (2018–2020)
  • Ski-Doo TUNDRA 600 EFI - LT (2021)
  • Ski-Doo TUNDRA 600 EFI - LT - (Built After March 2021) (2022)
Ещё 10
  • Ski-Doo TUNDRA 600 EFI - LT - (Built Before March 2021) (2022)
  • Ski-Doo TUNDRA 600 EFI - SPORT (2021–2022)
  • Ski-Doo TUNDRA 600HO E-TEC (2018)
  • Ski-Doo TUNDRA LT 550F XU (2014)
  • Ski-Doo TUNDRA LT 550F XU-154 (2015)
  • Ski-Doo TUNDRA SPORT & LT 550F XP (2013)
  • Ski-Doo TUNDRA SPORT 550F XU (2014)
  • Ski-Doo TUNDRA SPORT 550F XU-137 (2015)
  • Ski-Doo TUNDRA SPORT 600ACE XU137 (2015)
  • Ski-Doo Tundra STD & Sport & LT 550F XP-LTS (2011–2012)

Lynx adventure 2006–2009 · 6

  • Lynx adventure 300f (2007)
  • Lynx adventure 550 (2009)
  • Lynx adventure 550f (2007)
  • Lynx adventure lx 550 (2008)
  • Lynx adventure lx 550 f (2006–2007)
  • Lynx adventure v 800 (2007–2009)

Lynx enduro 2002 · 1

  • Lynx enduro 500 f (2002)

Lynx explorer 2005 · 1

  • Lynx explorer 550 (2005)

Lynx ranger 2005–2006 · 2

  • Lynx ranger 550 (2005–2006)
  • Lynx ranger 600 (2005)

Lynx rave 2006–2007 · 2

  • Lynx rave xtrim n duro 550f (2006)
  • Lynx rave xtrim std 550f (2007)

Lynx xtrim 2008–2009 · 1

  • Lynx xtrim 550 (2008–2009)

Список перенесён из каталогов производителя и не заменяет проверку по VIN: сомневаетесь — напишите нам, сверим по заводской схеме.

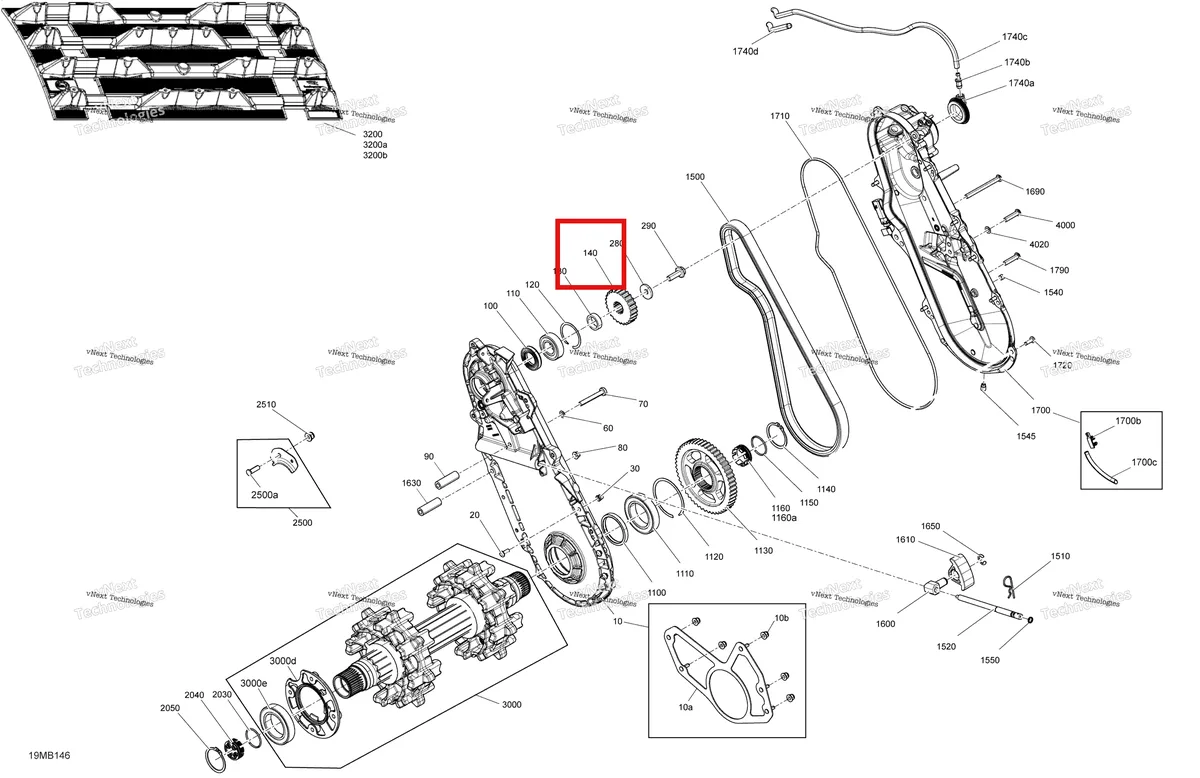

Схема применяемости: 504152031 Звездочка, 19 TEETH
Схема узла. Нужная позиция обведена красным.

Описание

Применяемость детали (OEM 504152031) — техника BRP, 2005–2021: Снегоходы Lynx: Ranger, Xtrim, Adventure (двигатели 550–800). Годы: 2005–2009. Снегоходы Ski-Doo: Renegade, MXZ, Summit, Expedition, GSX, GTX, Grand Touring, Skandic, Tundra (двигатели 600–800). Годы: 2005–2021.
