  • Схема сборки (OEM-каталог)

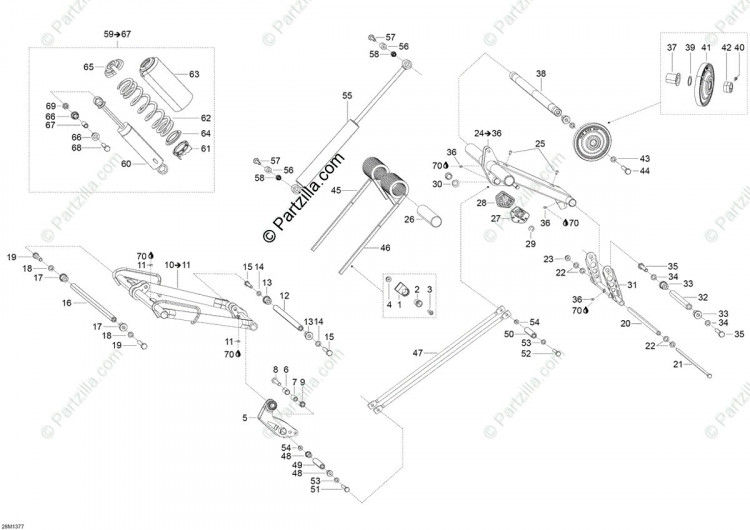

503191709 BRAS ARRIERE AS*REAR ARM ASS.

  • OEM 503191709
Техника
Ski-Doo
Применяемость
42 модели · схема узла

Применяемость

42 модели

Каталожный номер применяемости: 503191709

Ski-Doo EXPEDITION 2013–2018 · 16

  • Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME (2017)
  • Ski-Doo EXPEDITION - 4-STROKE - LE-SE (2017)
  • Ski-Doo EXPEDITION - LE-SE 4-STROKE (2016)
  • Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE (2016)
  • Ski-Doo EXPEDITION LE 1200 4-TEC (2015)
  • Ski-Doo EXPEDITION LE 1200 XU (2013–2014)
Ещё 10
  • Ski-Doo EXPEDITION LE 600 E-TEC (2015)
  • Ski-Doo EXPEDITION LE 600HOE, REV XU (2013)
  • Ski-Doo EXPEDITION LE 600HOE, XU (2014)
  • Ski-Doo EXPEDITION LE 900 ACE (2015)
  • Ski-Doo EXPEDITION LE/SE 1200 4-TEC (2018)
  • Ski-Doo EXPEDITION LE/SE 900 ACE (2018)
  • Ski-Doo EXPEDITION SE 1200 (2015)
  • Ski-Doo EXPEDITION SE 600 E-TEC (2015)
  • Ski-Doo EXPEDITION SE 900 ACE (2015)
  • Ski-Doo EXPEDITION SWT 900 ACE (2018)

Ski-Doo SKANDIC 2012–2018 · 24

  • Ski-Doo SKANDIC - 2-STROKE (2016)
  • Ski-Doo SKANDIC - 2-STROKE - WT-SWT (2017)
  • Ski-Doo SKANDIC - 4-STROKE (2016)
  • Ski-Doo SKANDIC - 4-STROKE - WT-SWT (2017)
  • Ski-Doo SKANDIC 550F (2018)
  • Ski-Doo SKANDIC 600 ACE (2018)
Ещё 18
  • Ski-Doo SKANDIC 600HO E-TEC (2018)
  • Ski-Doo SKANDIC 900 ACE (2018)
  • Ski-Doo SKANDIC SWT 550 (2015)
  • Ski-Doo SKANDIC SWT 550F XU (2014)
  • Ski-Doo SKANDIC SWT 600 E-TEC (2015)
  • Ski-Doo SKANDIC SWT 600HOETEC XU (2013–2014)
  • Ski-Doo SKANDIC SWT 900 ACE (2015)
  • Ski-Doo SKANDIC WT 550 (2015)
  • Ski-Doo SKANDIC WT 600 ACE (2015)
  • Ski-Doo SKANDIC WT 600 E-TEC (2015)
  • Ski-Doo Skandic SWT 600 ACE (4-strokes) (2012)
  • Ski-Doo Skandic SWT 600 ACE (4-strokes) XU (2013)
  • Ski-Doo Skandic SWT 600 H.O. E-TEC (2012)
  • Ski-Doo Skandic WT 550F XU (2012–2014)
  • Ski-Doo Skandic WT 600 ACE (4-strokes) (2012)
  • Ski-Doo Skandic WT 600 ACE (4-strokes) XU (2013)
  • Ski-Doo Skandic WT 600HOETEC XU (2013–2014)
  • Ski-Doo Skandic WT 900 ACE (2015)

Ski-Doo TUNDRA 2014–2015 · 2

  • Ski-Doo TUNDRA WT 550 RER (2015)
  • Ski-Doo TUNDRA WT 550F RER XU (2014)

Список перенесён из каталогов производителя и не заменяет проверку по VIN: сомневаетесь — напишите нам, сверим по заводской схеме.

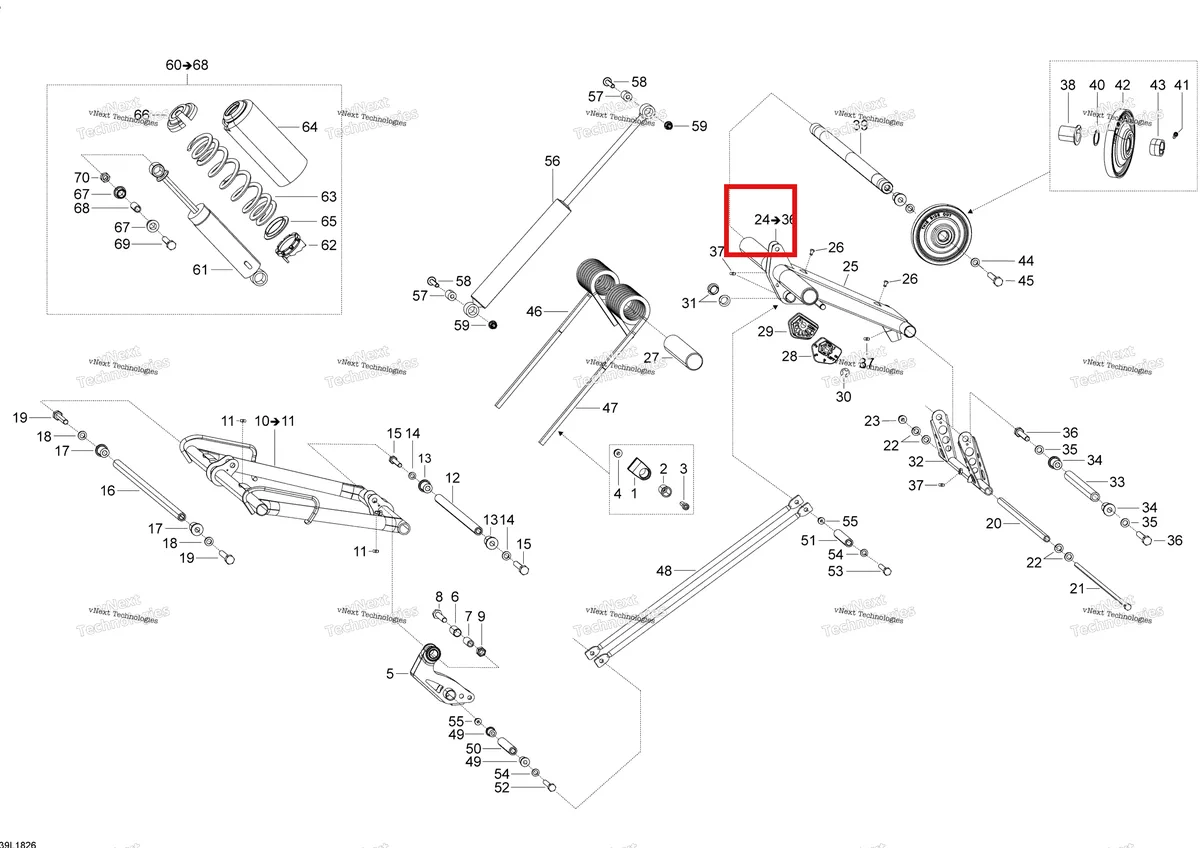

Схема применяемости: 503191709 BRAS ARRIERE AS*REAR ARM ASS.
Схема узла. Нужная позиция обведена красным.

Описание

Применяемость детали (OEM 503191709) — техника BRP, 2012–2017: Снегоходы Ski-Doo: Expedition, Skandic, Tundra (двигатели 550–1200). Годы: 2012–2017.
