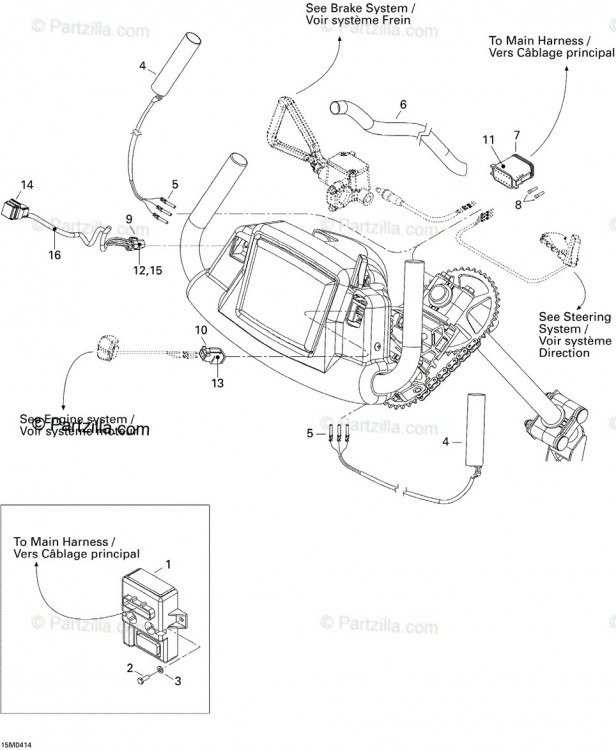

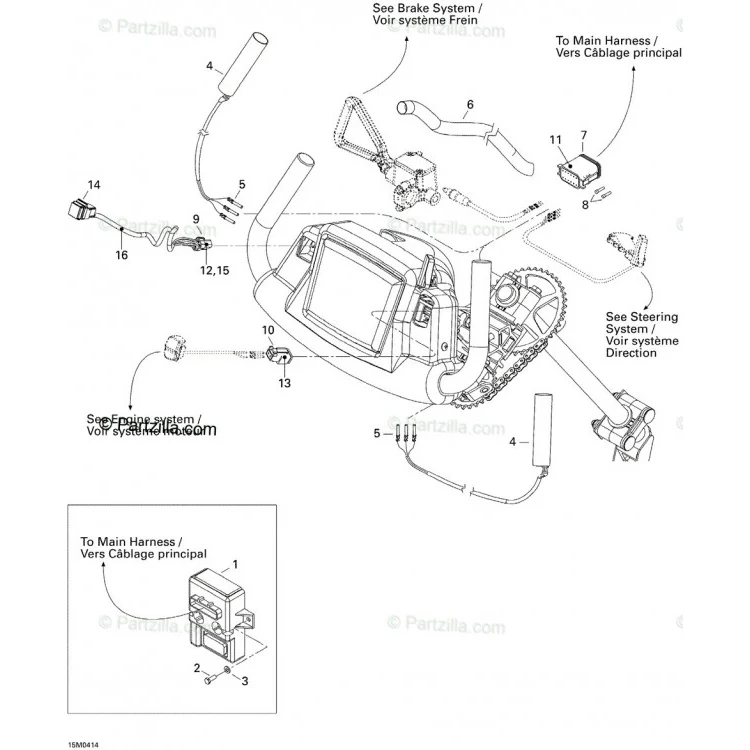

  • Схема сборки (OEM-каталог)

409015700 Гнездовой замок (12 контуров)

  • OEM 409015700
Техника
Sea-Doo, Ski-Doo
Применяемость
59 моделей · схема узла

Применяемость

59 моделей

Каталожный номер применяемости: 409015700

Sea-Doo GTI 2011–2014 · 12

  • Sea-Doo GTI 130 (2011, 2013–2014)
  • Sea-Doo GTI 130, (23CA, 23CB) (2012)
  • Sea-Doo GTI 130, (23CS, 23CR) (2012)
  • Sea-Doo GTI LTD 155 (2011, 2013–2014)
  • Sea-Doo GTI LTD 155, (39CA, 39CB) (2012)
  • Sea-Doo GTI LTD 155, (39CS) (2012)
Ещё 6
  • Sea-Doo GTI SE 130 (2011, 2013–2014)
  • Sea-Doo GTI SE 130, (24CA, 24CB, 24CC) (2012)
  • Sea-Doo GTI SE 130, (24CS, 24CR) (2012)
  • Sea-Doo GTI SE 155 (2011, 2013–2014)
  • Sea-Doo GTI SE 155, (30CA, 30CB) (2012)
  • Sea-Doo GTI SE 155, (30CS) (2012)

Sea-Doo GTR 2012–2014 · 1

  • Sea-Doo GTR 215 (2012–2014)

Sea-Doo GTS 2015 · 1

  • Sea-Doo GTS 130 & RENTAL (2015)

Sea-Doo GTX 2002–2015 · 22

  • Sea-Doo GTX 155 (2010–2011, 2013–2015)
  • Sea-Doo GTX 155, (38CA, 38CB) (2012)
  • Sea-Doo GTX 155, (38CS, 38CR) (2012)
  • Sea-Doo GTX 215 (2011, 2013)
  • Sea-Doo GTX 215, (42CA, 42CB) (2012)
  • Sea-Doo GTX 215, (42CS) (2012)
Ещё 16
  • Sea-Doo GTX 4-TEC (2003–2004)
  • Sea-Doo GTX 4-TEC Wake (2003)
  • Sea-Doo GTX 4-TEC, 5573/5574/5593/5594 (2002)
  • Sea-Doo GTX 4-TEC, LTD SCIC (2005)
  • Sea-Doo GTX 4-TEC, LTD Supercharged (2003–2004)
  • Sea-Doo GTX 4-TEC, STD (2005)
  • Sea-Doo GTX 4-TEC, Special Supercharged (2004)
  • Sea-Doo GTX 4-TEC, Supercharged (2003–2005)
  • Sea-Doo GTX 4-TEC, WAKE (2004–2005)
  • Sea-Doo GTX LIMITED iS 255 (2009)
  • Sea-Doo GTX LTD 215 (2014–2015)
  • Sea-Doo GTX LTD IS 260 (2010–2011, 2013–2015)
  • Sea-Doo GTX LTD iS 260, (18CA, 18CB) (2012)
  • Sea-Doo GTX LTD iS 260, (18CS) (2012)
  • Sea-Doo GTX S 155 (2012–2015)
  • Sea-Doo GTX iS 215 (2010–2011)

Sea-Doo RXP 2004–2005 · 1

  • Sea-Doo RXP (2004–2005)

Sea-Doo RXP-X 2012–2014 · 1

  • Sea-Doo RXP-X 260 & RS (2012–2014)

Sea-Doo RXT 2005–2015 · 9

  • Sea-Doo RXT (2005)
  • Sea-Doo RXT 215 (2010)
  • Sea-Doo RXT 260 & RS (2011, 2013–2015)
  • Sea-Doo RXT 260 (IS) (2012)
  • Sea-Doo RXT 260 (RS), (17CA, 17CB) (2012)
  • Sea-Doo RXT 260 (RS), (17CS) (2012)
Ещё 3
  • Sea-Doo RXT aS X & aS XRS 260 (2011)
  • Sea-Doo RXT iS 255 (2009)
  • Sea-Doo RXT iS 260 (2010–2011)

Sea-Doo RXT-X 2010–2015 · 3

  • Sea-Doo RXT-X 260 & RS (2011–2015)
  • Sea-Doo RXT-X AS 260 & RS (2012–2015)
  • Sea-Doo RXT-X and X RS 260 (2010)

Sea-Doo WAKE 2011–2014 · 3

  • Sea-Doo WAKE 155 (2011, 2013–2014)
  • Sea-Doo WAKE 155, (35CA, 35CB) (2012)
  • Sea-Doo WAKE 155, (35CR, 35CS) (2012)

Sea-Doo WAKE PRO 2010–2015 · 1

  • Sea-Doo WAKE PRO 215 (2010–2015)

Sea-Doo XP 2003–2004 · 2

  • Sea-Doo XP DI (2004)
  • Sea-Doo XP DI, 6130/6131 (2003)

Ski-Doo Electric 2024 · 1

  • Ski-Doo Electric GRAND TOURING - SPORT - EVRA - Brigth White - 120X14X0.75LFF Track (2024)

Ski-Doo Elite 2004 · 2

  • Ski-Doo Elite 1500 1st Edition (2004)
  • Ski-Doo Elite 1500 2nd Edition (2004)

Список перенесён из каталогов производителя и не заменяет проверку по VIN: сомневаетесь — напишите нам, сверим по заводской схеме.

Схема применяемости: 409015700 Гнездовой замок (12 контуров)
Схема узла. Нужная позиция обведена красным.

Описание

Применяемость детали (OEM 409015700) — техника BRP, 2002–2021: Гидроциклы Sea-Doo: GTX, RXT, RXP, GTI, GTS, GTR, Wake, RXP-X, RXT-X. Годы: 2002–2015. Мотоциклы Can-Am: F3. Годы: 2016–2021.
